InteractiveChecklists

InteractiveChecklists is an Android application for viewing and interacting with Markdown and PDF checklists. It is built with Jetpack Compose and follows an MVVM-style architecture. It is designed to be extensible with an interactive aviation map featuring live DCS data integration, tactical markers, and dynamic route and pattern calculation. Runway heading–based approach visualization and real-time map updates enable enhanced situational awareness during flight operations.

Development status: This repository is a development version and not an official release. The app is functional but under active development and may contain experimental features.

Note: A preview APK for version 1.1 is planned. If you are not familiar with Android Studio or building apps from source, please wait for the official preview release to test the app.

Table of Contents

• Features
• Screenshots
• Demo Videos
• Installation
• System Requirements
• How to Build & Run
• Key Components
• Contributing
• Support & Contact
• FAQ
• Acknowledgements & Credits
• License

Features

• Unified File System: Manage files from bundled assets and internal storage in a single hierarchical view.
• Multilanguage Support: The app supports English, Spanish and German. You can switch the language in the Settings menu. All UI text is available in English.
• Multi-Tab System: Open multiple documents (MD/PDF) with a scrollable tab bar, quick tab switcher, swipe navigation, and tab persistence.
• PDF Viewer: PDF viewer with annotations (draw/highlight/erase), pinch-to-zoom, page snapping, and color inversion.
• Interactive Markdown Checklists: Stateful checkboxes and collapsible sections for interactive checklists.
• Tagging System: Assign tags to files for filtering and organization.
• QuickNotes: Persistent notes powered by Room, with search, autosave, and markdown support.
• Data Persistence: Stores user preferences, annotations, shortcuts, tags, and open tabs locally.
• Aviation Map (experimental): OpenStreetMap-based map viewer with live aircraft position tracking from the DataPad stream. Adds a MapViewer tab showing aircraft position, heading, altitude and basic overlays — see docs/EN/features/AVIATION_MAP_FEATURE.md for details and configuration.
• DataPad (experimental): Live flight telemetry display (UDP) for DCS World. Streams aircraft telemetry to the app for realtime status and popup details — see docs/EN/features/DATAPAD_FEATURE.md for full details and setup instructions.
• Tactical Units Tracking (experimental): Live tactical unit markers (aircraft, helicopter, ground, ship) on the map with real-time updates. Marker popups include “Last seen” timestamps and refresh snippets with speed/altitude. A “Live Units Only” filter (shows units seen in the last 10s) is synchronized between the list and the map. See docs/EN/features/TACTICAL_UNITS_TRACKING.md and scripts/DCS-SCRIPTS-FOLDER-Experimental/README_ENTITY_TRACKING.md for setup and details.

• MapDatabaseTools (Python): A collection of Python utilities for receiving, decrypting (AES-GCM), and visualizing DCS flight telemetry. Includes a PySide6 GUI with an embedded OpenStreetMap/Leaflet map for live aircraft tracking, a marker database, and helper scripts to manage map assets. See scripts/MapDatabaseTools/README.md for usage and configuration.

• Supported maps (marker DB):

Roadmap

Planned features and long-term improvements are tracked in the Roadmap document.

Quick Start – Windows (Recommended & Easiest)

Install the DCS Export Script (Required)

Copy export.lua from
scripts/DCS-SCRIPTS-FOLDER-Experimental

into your DCS scripts folder, for example:
%USERPROFILE%\Saved Games\DCS\Scripts\

This script enables DCS to write entity batches and player telemetry files into a subfolder that the Python forwarder reads.

After copying:

• Start or reload your mission, or
• Restart DCS

to activate the export script.

Important Note – Python Requirement

The Python forwarder (DataPad Server) requires a **local Python installation

• On Windows, installing Python via the Microsoft Store (Python 3.12) is recommended for simplicity.
• The included install.bat:
  • Creates a virtual environment (venv)
  • Installs all required Python packages into that environment

This keeps dependencies isolated and clean.

• To update or reinstall packages: re-run install.bat
• To remove everything: delete the created venv folder

Initial Setup

1. Navigate to the folder:
   /DCS-SCRIPTS-FOLDER-Experimental

2. One-time setup – double-click:
   install.bat
   → Wait 1–2 minutes while required packages are installed
   (only needed once or when updating packages)

3. Start the server – double-click:
   run.bat
   → A small console window / menu will open

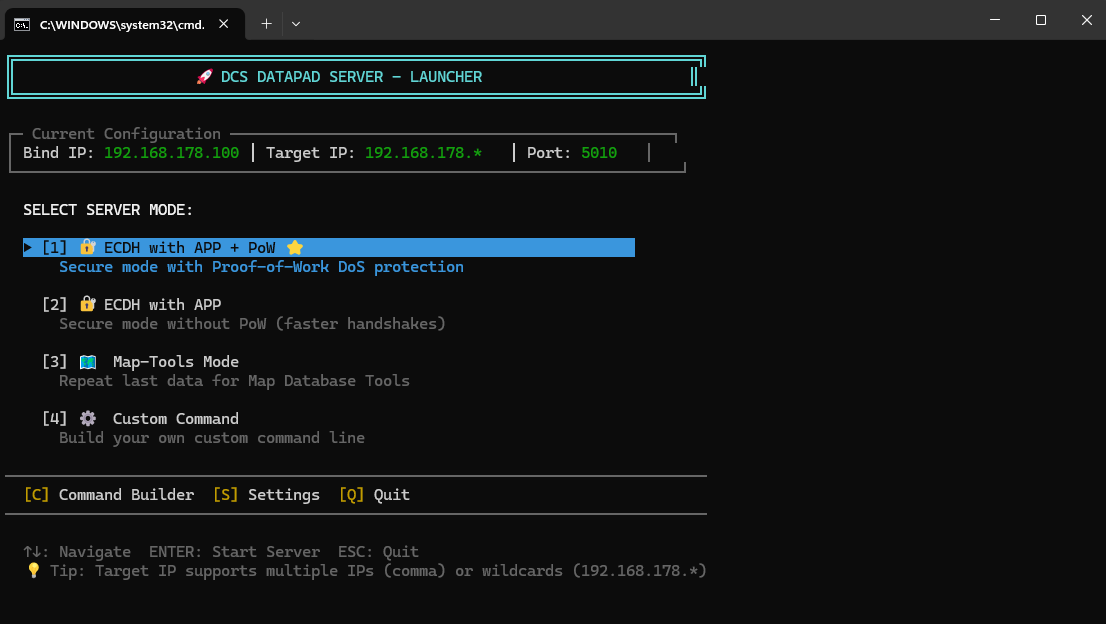

DataPad server launcher with configuration menu

4. Server Setup

• Enter the Server IP address, Target IP(s), and enable PoW (recommended)
  • Configure this via the Settings menu by pressing [S]
  • Or edit the auto-generated server_config.json located next to start.bat

Notes

• Server IP address
  → IP of the PC where DCS is running
• Target IPs
  → Android devices (tablet or smartphone) in your Wi-Fi network
• You can:
  • Enter each target IP individually, or
  • Allow all devices in your network using .* at the end of the IP address
    • Example: 192.168.1.*

Start the Server

• Press Enter to confirm the settings
• Select the server mode using the arrow keys
  • Recommended: ECDH with App + PoW
    • Easiest to set up
    • Secure and safe for automatic pairing
• Press Enter to start the server

QR Code Pairing

DataPad server QR-code generation for authorized_devices.json

1. In the server window:
   • Press B within 5 seconds → A QR code will be displayed automatically
   • (Optional) You can also configure IP/port manually

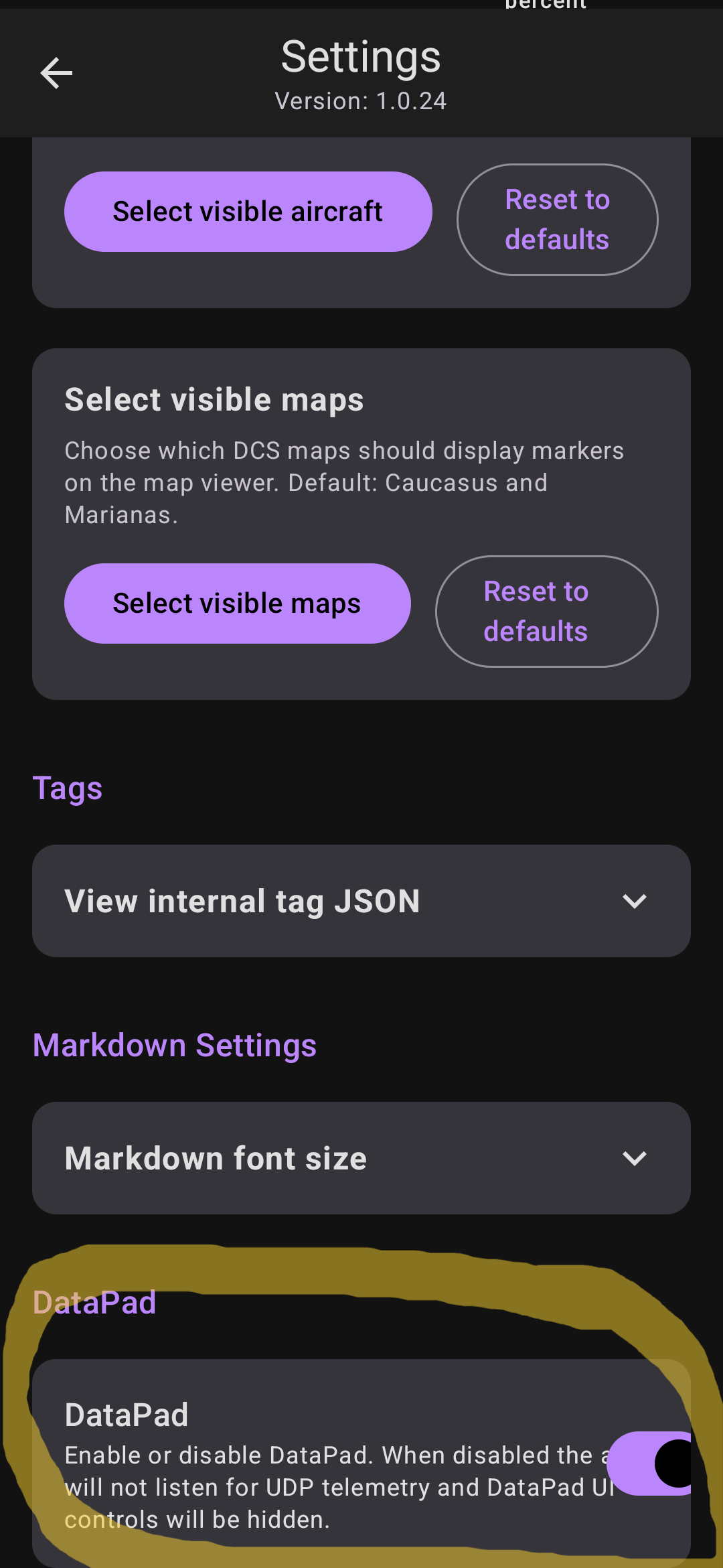

5. Android App Setup

Activates the in App datapad functions

1. Open the Android app
2. Go to Settings → DataPad
3. Turn DataPad ON

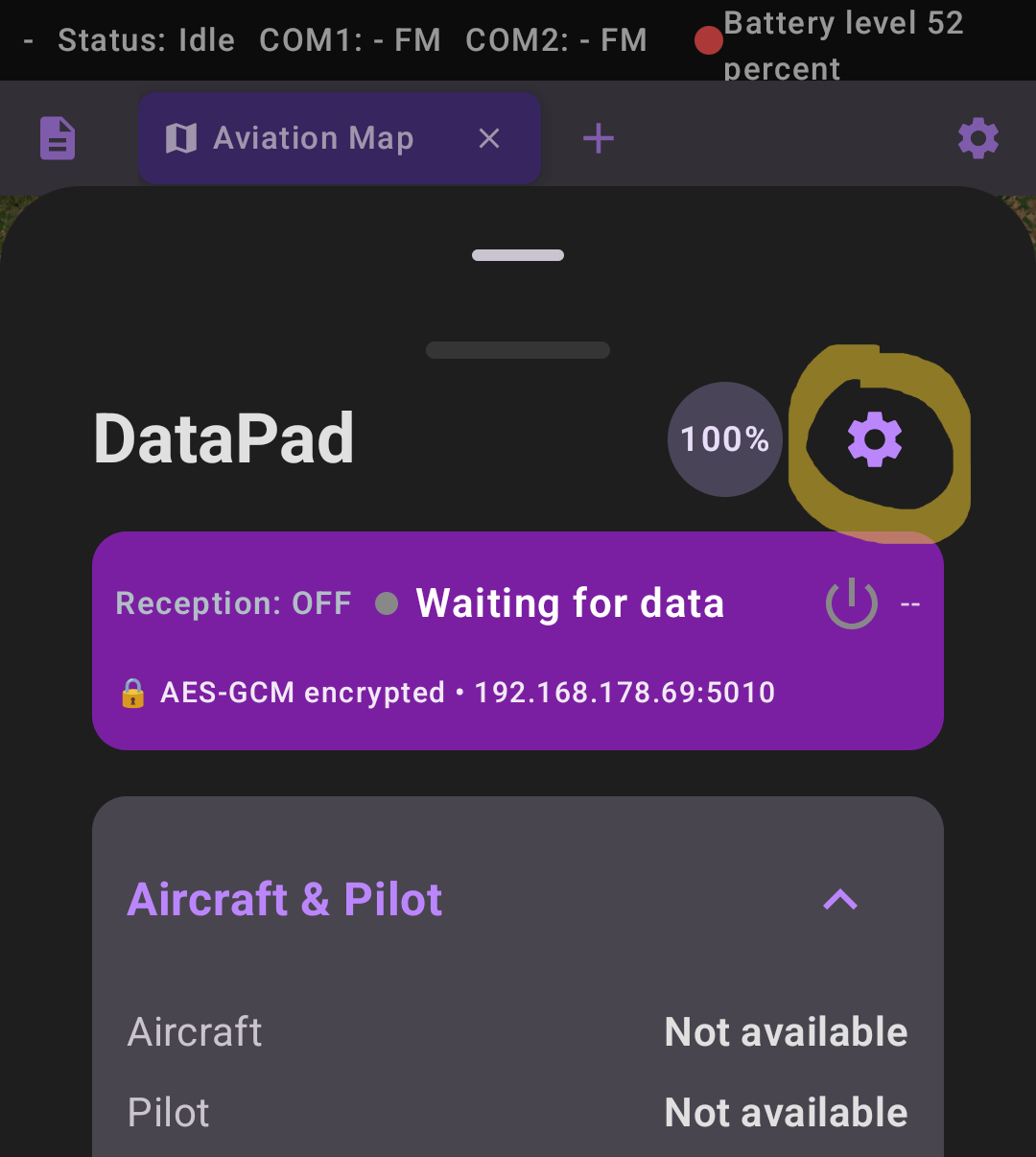

Settings Menu for datapad

1. Open the DataPad Popup using the FAB button
2. Tap Settings in the DataPad Popup

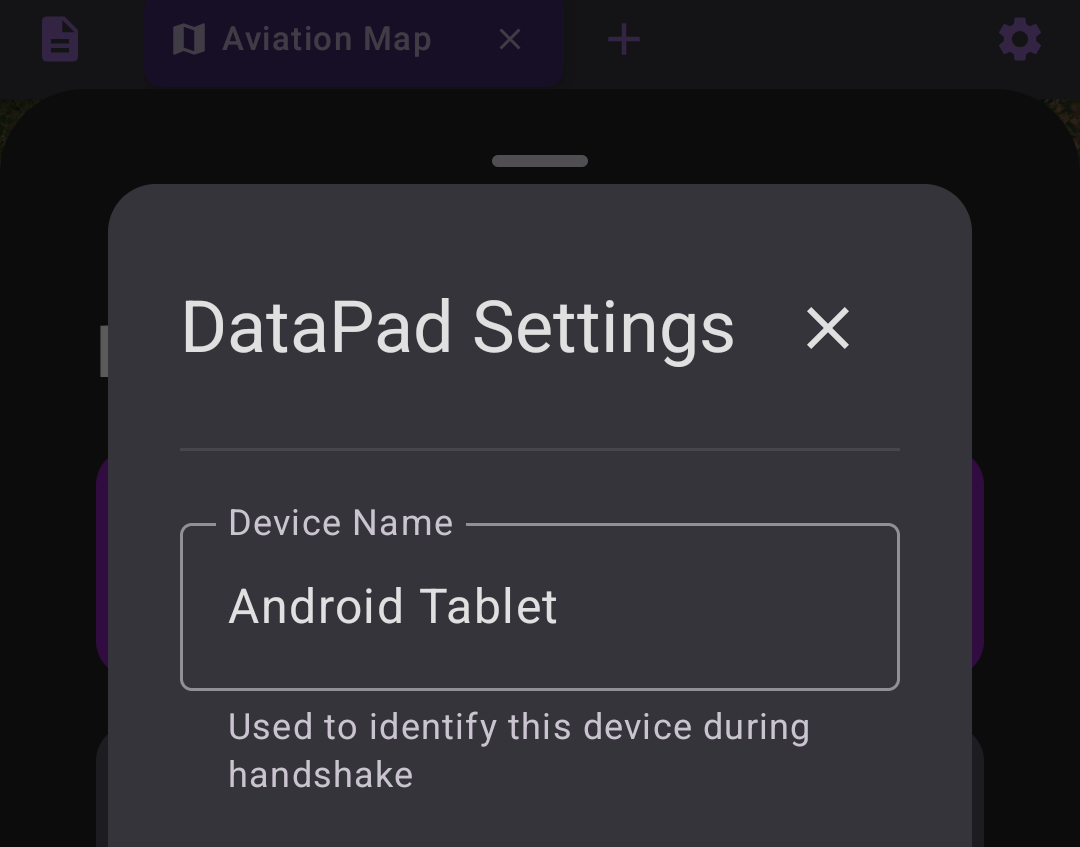

Enter your Device Name

1. Enter a Device name

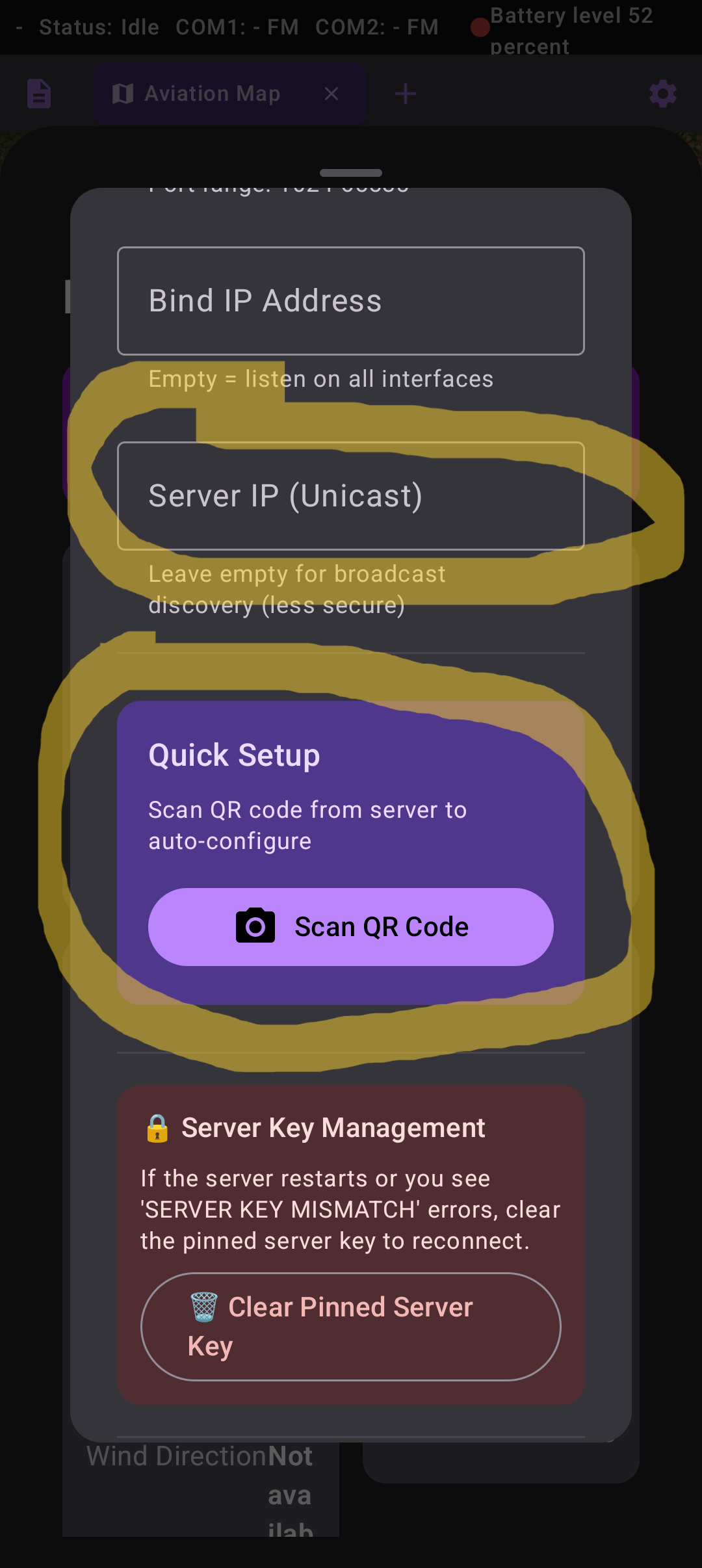

Enter your Server IP and Scan QR-Code

1. Scroll down set your ServerIP (recommend) then to QR-Code setup

   or for Manual adding, copy Device Name, ID and Public Key and enter as new entry in authorized_devices.json

2. Tap Scan QR Code
3. Scan the QR code displayed on your PC screen
   • (First time only – securely registers your device)
4. Enable the toggle button in the DataPad Popup
   • If the correct server is selected, a heartbeat is sent every 30 seconds

Data Status & Indicators

• When a DCS mission starts and you are seated in an aircraft, the forwarder (DataPad Server) begins sending live data to the app

• The current status is shown in the top info bar:

  • 🔴 Red – No incoming data / No mission running
  • 🟡 Yellow – Mission running, but not in an aircraft / No active live data
  • 🟢 Green – In an aircraft and receiving telemetry and/or tactical unit live data

Unblocking Files in DCS World (Important)

Some DCS files may be blocked by Group Policy or antivirus software.
This can prevent correct operation.

Using PowerShell (Recommended)

1. Press the Windows key and type PowerShell
2. Right-click Windows PowerShell → Run as Administrator
3. To unblock a single file, enter:

Unblock-File "C:\Program Files\Eagle Dynamics\DCS World\bin\lua-dxgui.dll"


4. Press **Enter**

### To Unblock All DLL Files at Once

```powershell
Get-ChildItem "C:\Program Files\Eagle Dynamics\DCS World\bin\*.dll" | Unblock-File

Press Enter.

Alternative: Repair DCS

If unblocking does not help:

1. Open DCS Launcher
2. Go to Settings (gear icon)
3. Click Repair
4. Wait for the process to complete

This will restore and unblock all affected files.

✅ Done! The app should now receive live telemetry and tactical data from DCS.

Security – Quick Summary (2025/2026)

• Connection is encrypted (AES-256 + ECDH handshake) – similar to secure websites
• Only registered devices can connect (via QR code or manual list)
• First connection is remembered (Trust on First Use) → protects against fake servers later
• Optional extra protection: Proof-of-Work (anti-spam) – can be turned on in run.bat menu if needed

For most users the QR code method is secure enough and very simple.

For Linux/macOS or advanced users (manual start)

If you don’t use Windows or want full control:

cd scripts/DCS-SCRIPTS-FOLDER-Experimental
python -m venv venv
source venv/bin/activate          # Linux/macOS
# or on Windows: venv\Scripts\activate
pip install -r requirements.txt
python forward_parsed_udp.py --authorized-devices authorized_devices.json --host YOUR_PC_IP --port 5010

Entity Contacts (tactical units): Enable Entity Tracking and run the forwarder with entity tracking enabled to receive live markers; see scripts/DCS-SCRIPTS-FOLDER-Experimental/README_ENTITY_TRACKING.md and docs/EN/features/TACTICAL_UNITS_TRACKING.md.

See docs/EN/features/DATAPAD_FEATURE.md for full usage, configuration, and troubleshooting.

Phase 1 (experimental): This is Phase 1 of DataPad — future phases will add more telemetry, visualizations, and security improvements.

Next up: 2-way communication (experimental) to enable data flow back to DCS.

Screenshots

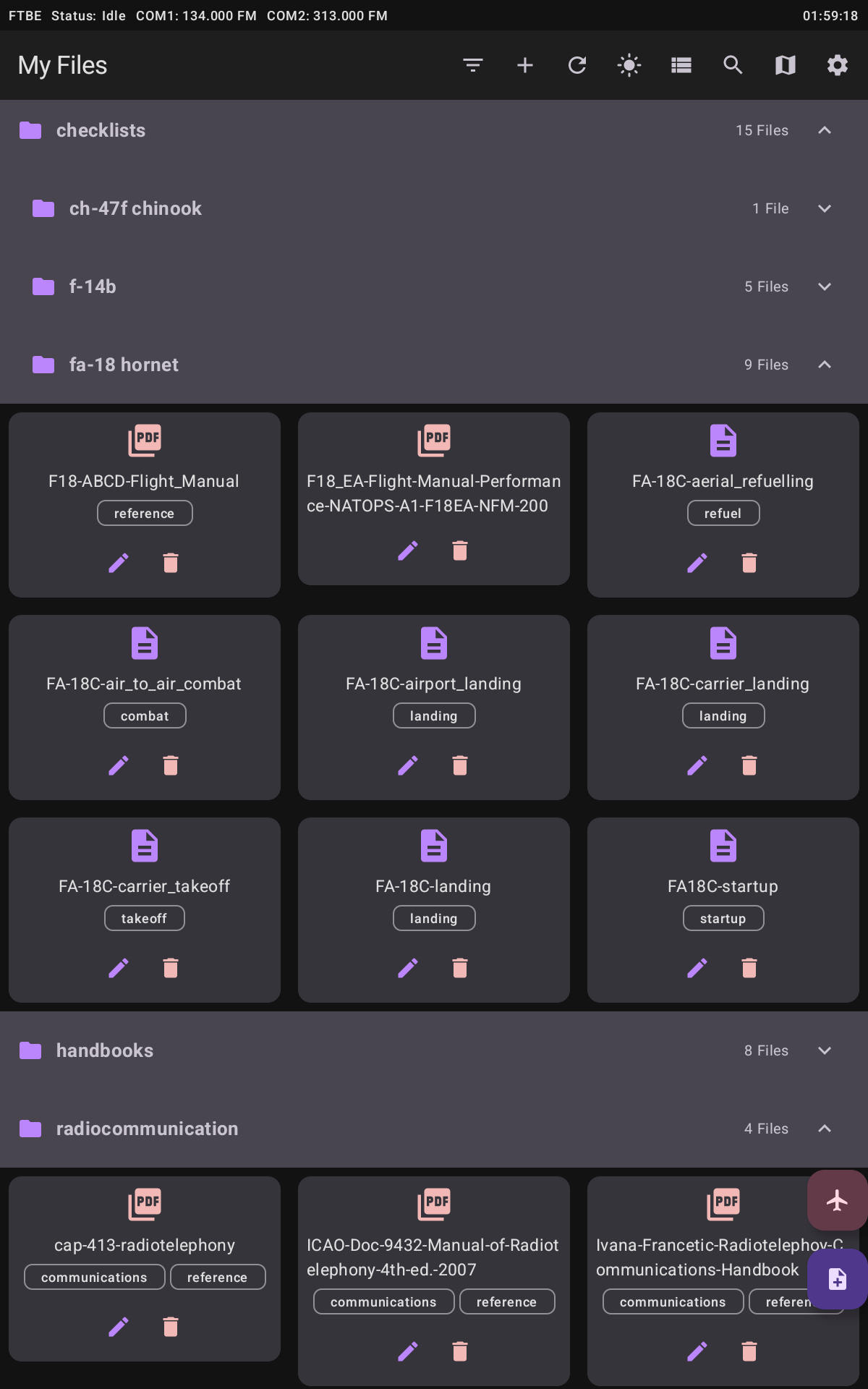

File explorer showing the hierarchical file and folder structure

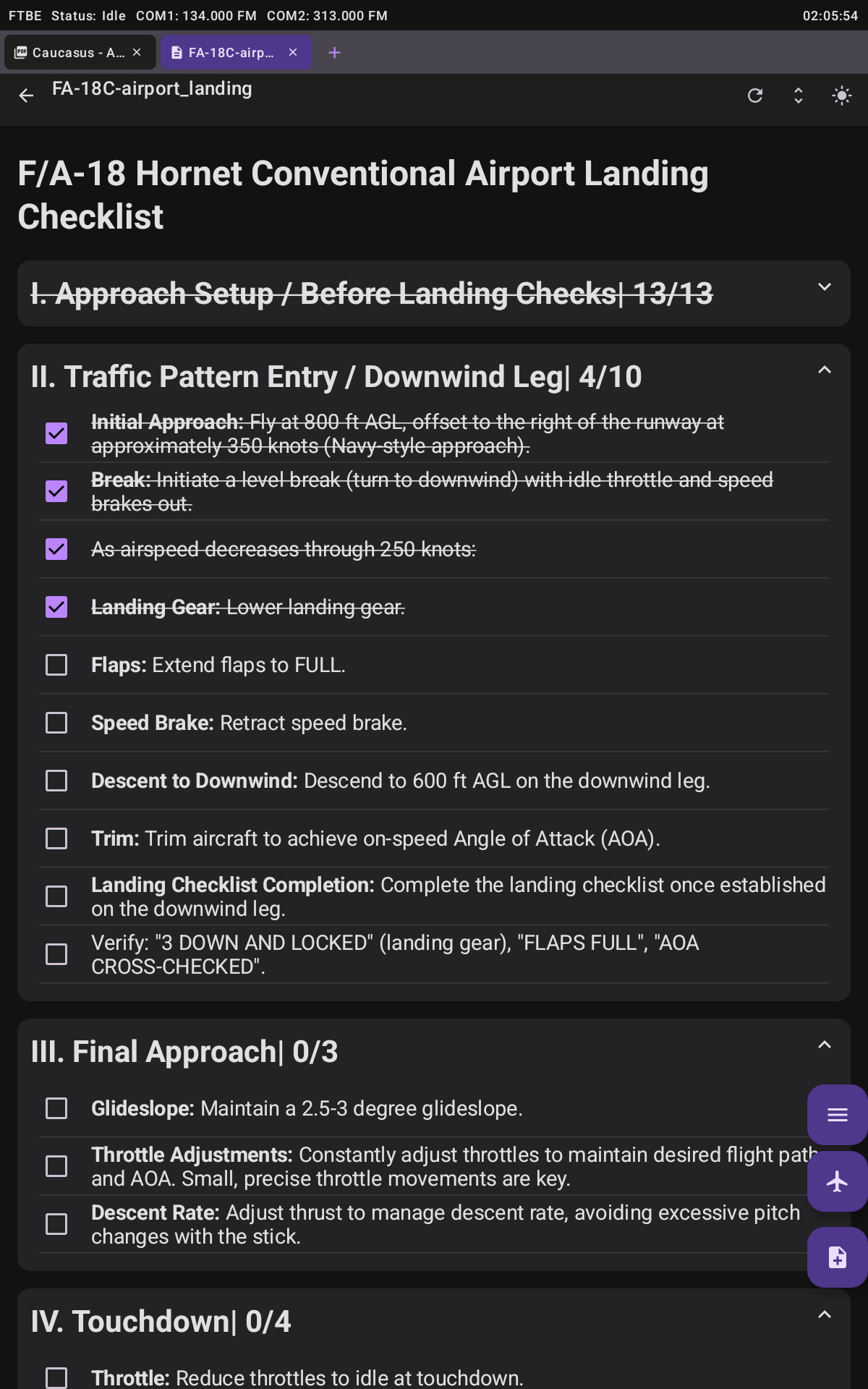

Interactive Markdown checklist with stateful checkboxes

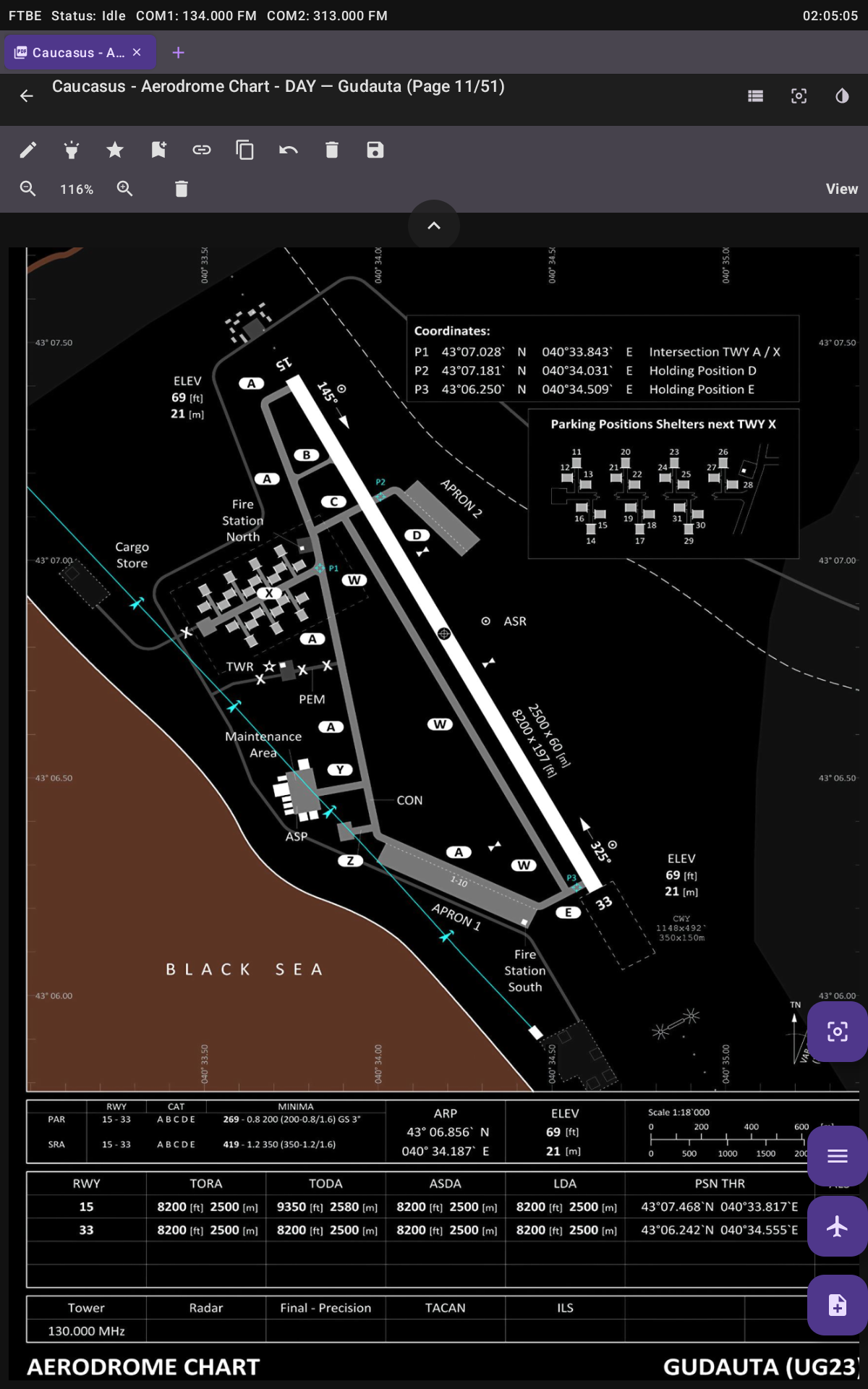

PDF viewer with drawing, highlighting and annotation capabilities

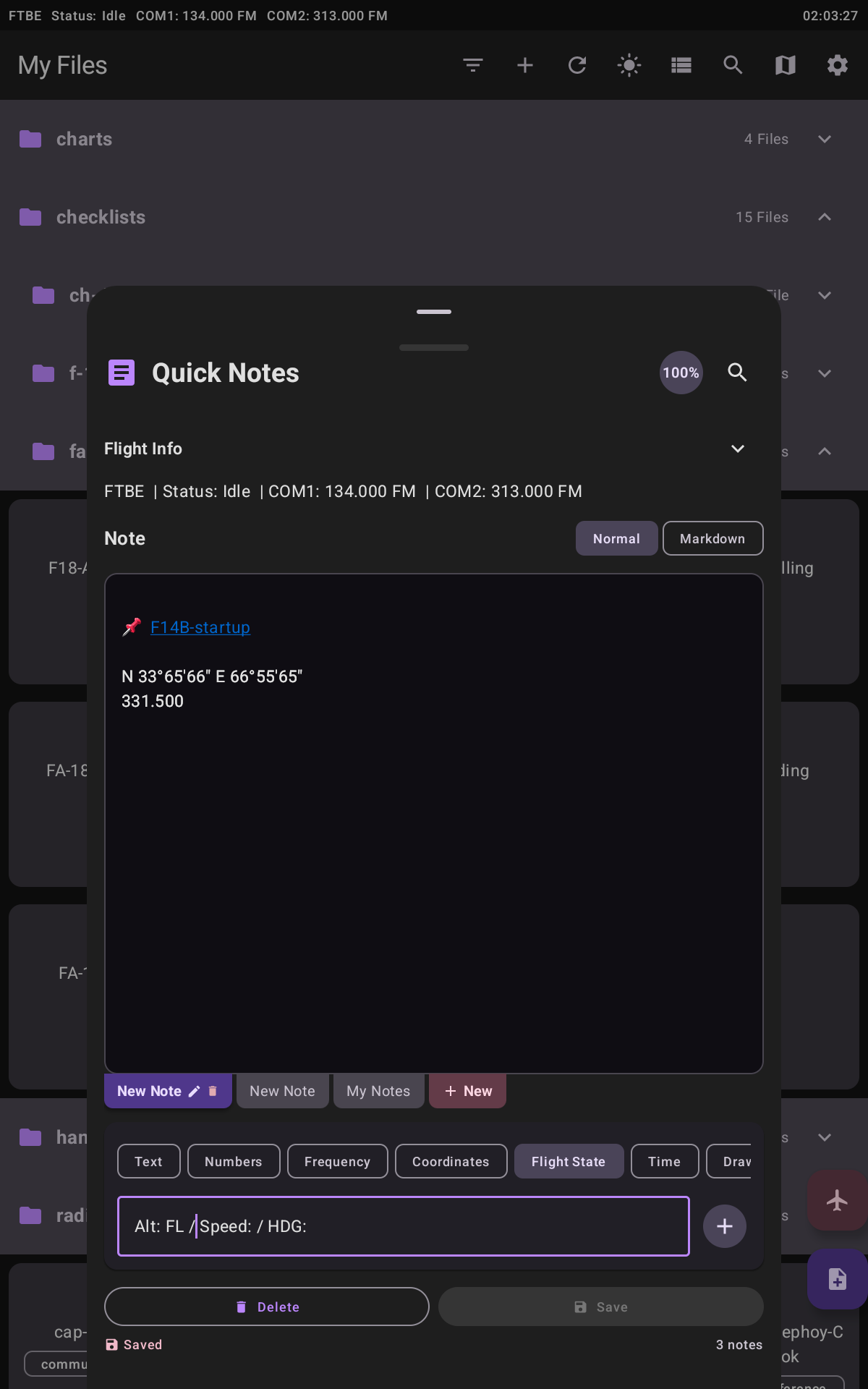

QuickNotes editor with markdown support and autosave

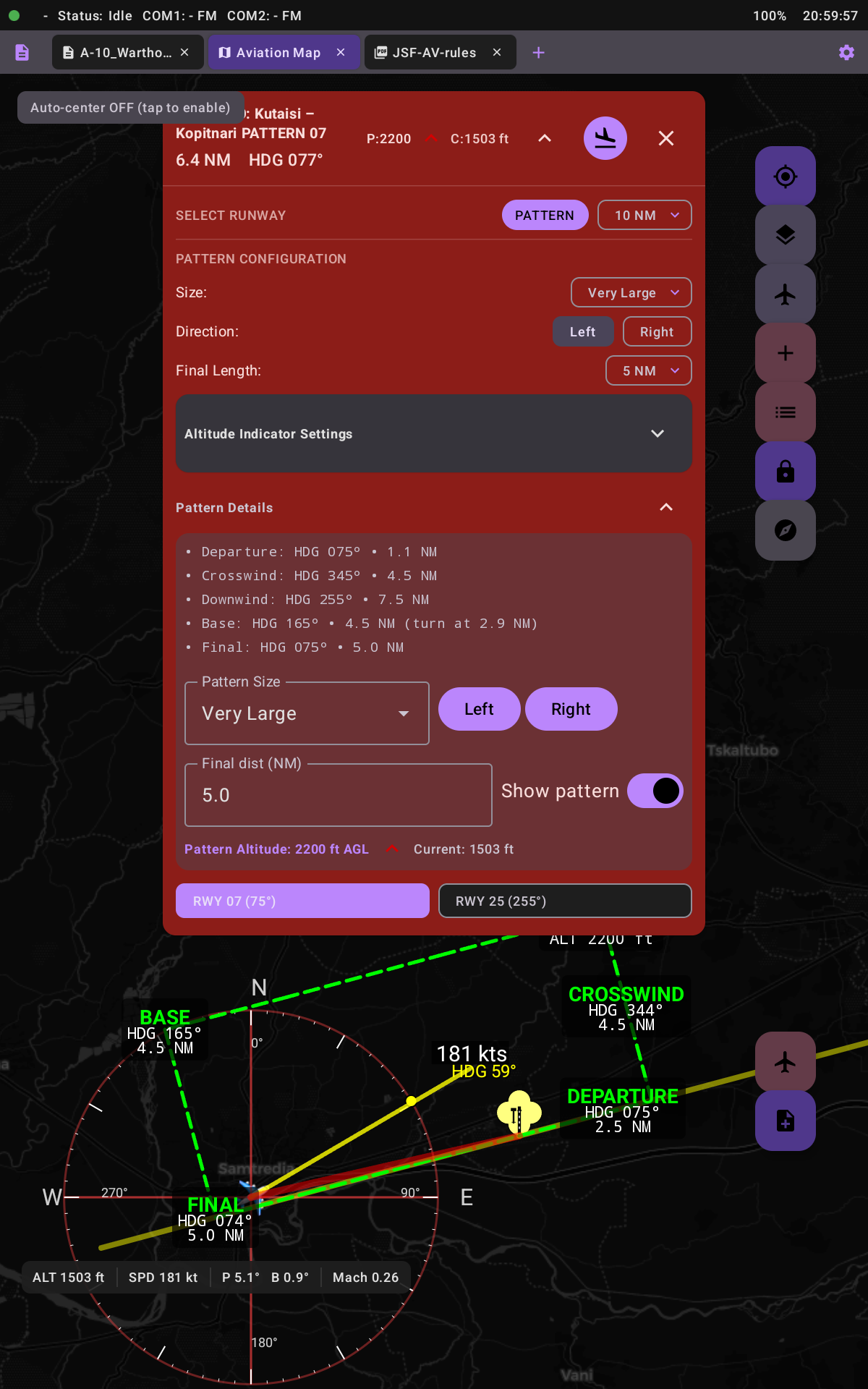

Landing pattern calculator displaying flight path calculations

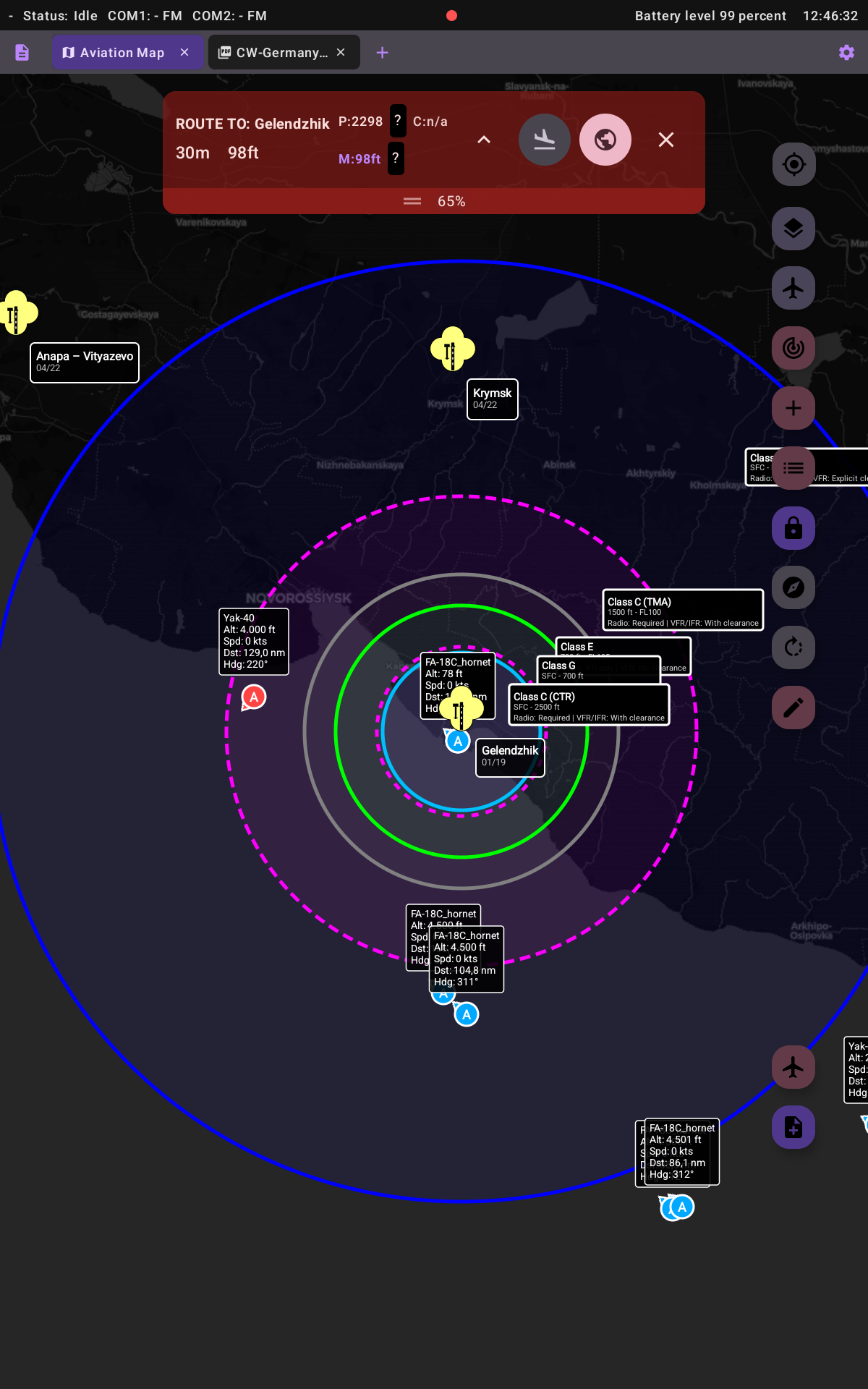

Early ATC features showing airspace visualization

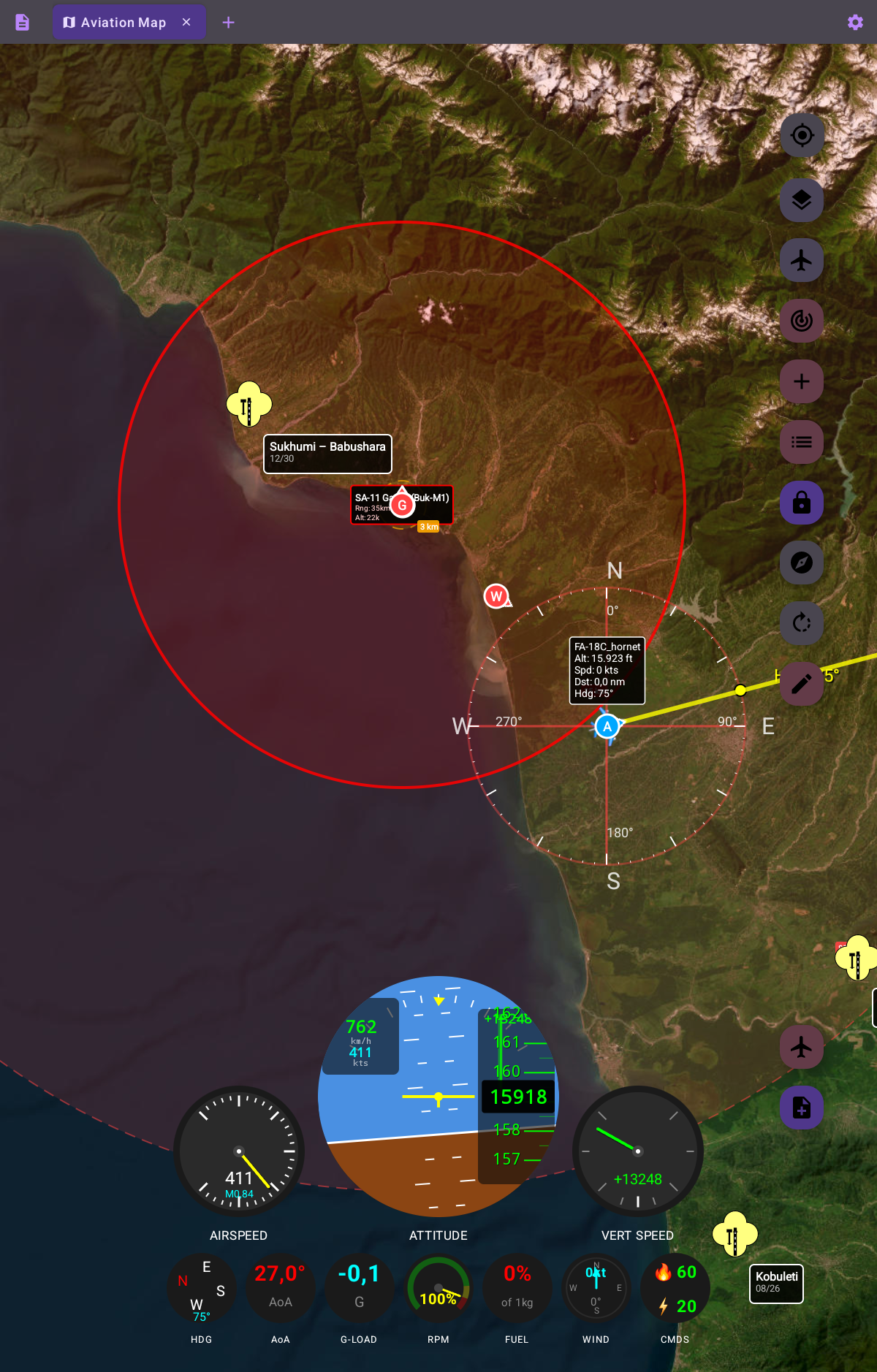

AA range rings visualization

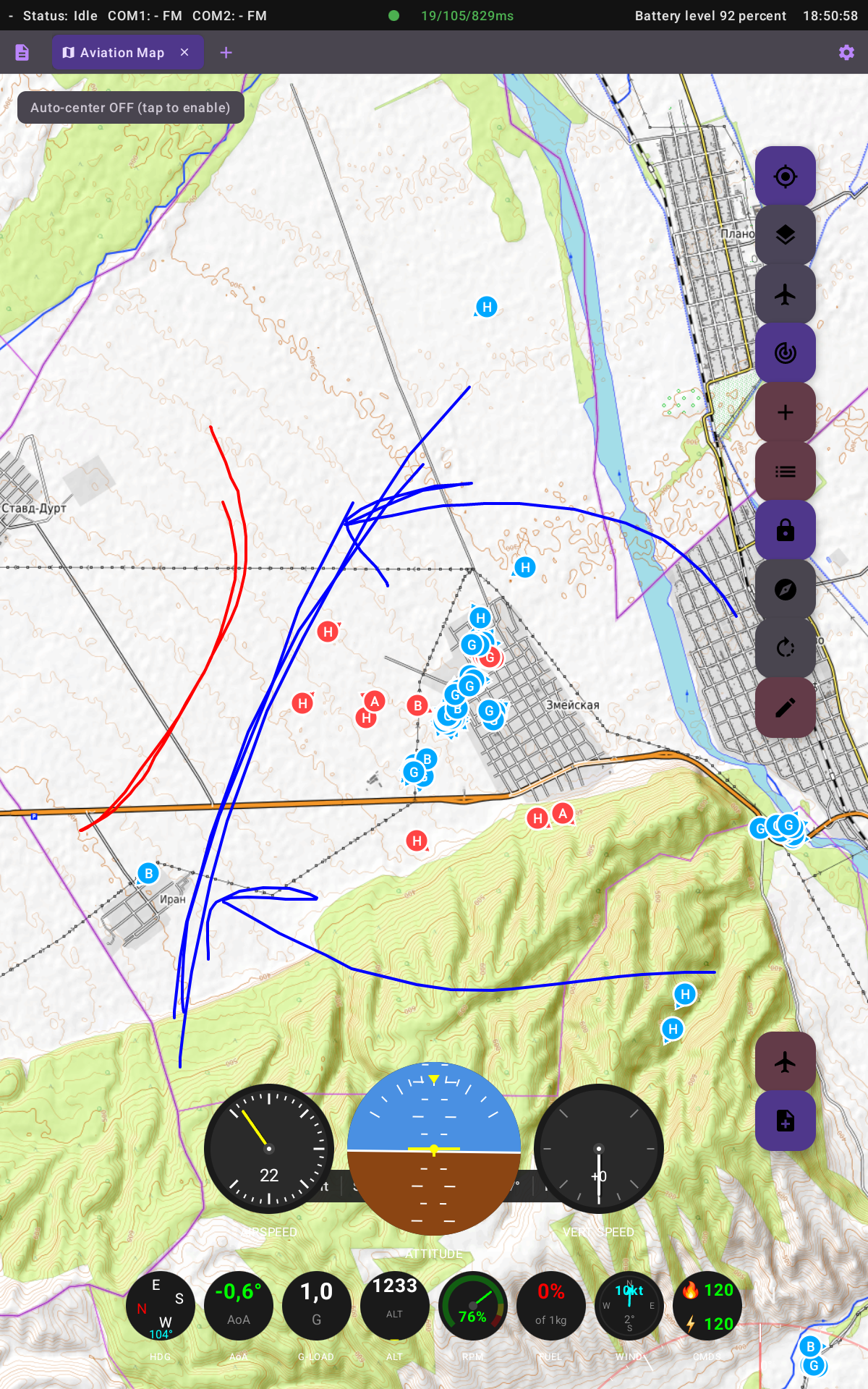

Live tactical markers displaying real-time unit positions

Flight path tracking overlay on the aviation map

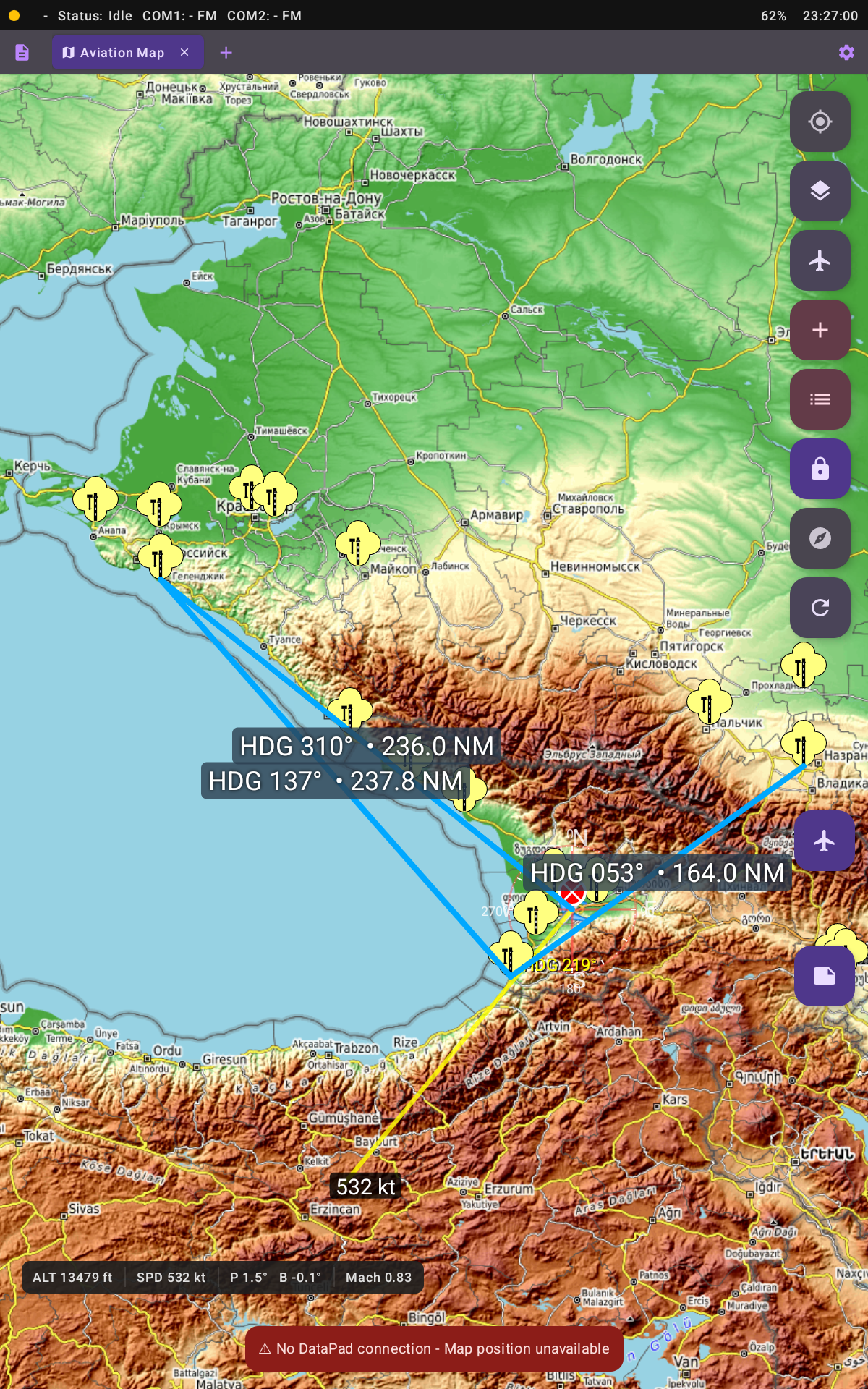

Route planning with labeled waypoints and flight paths

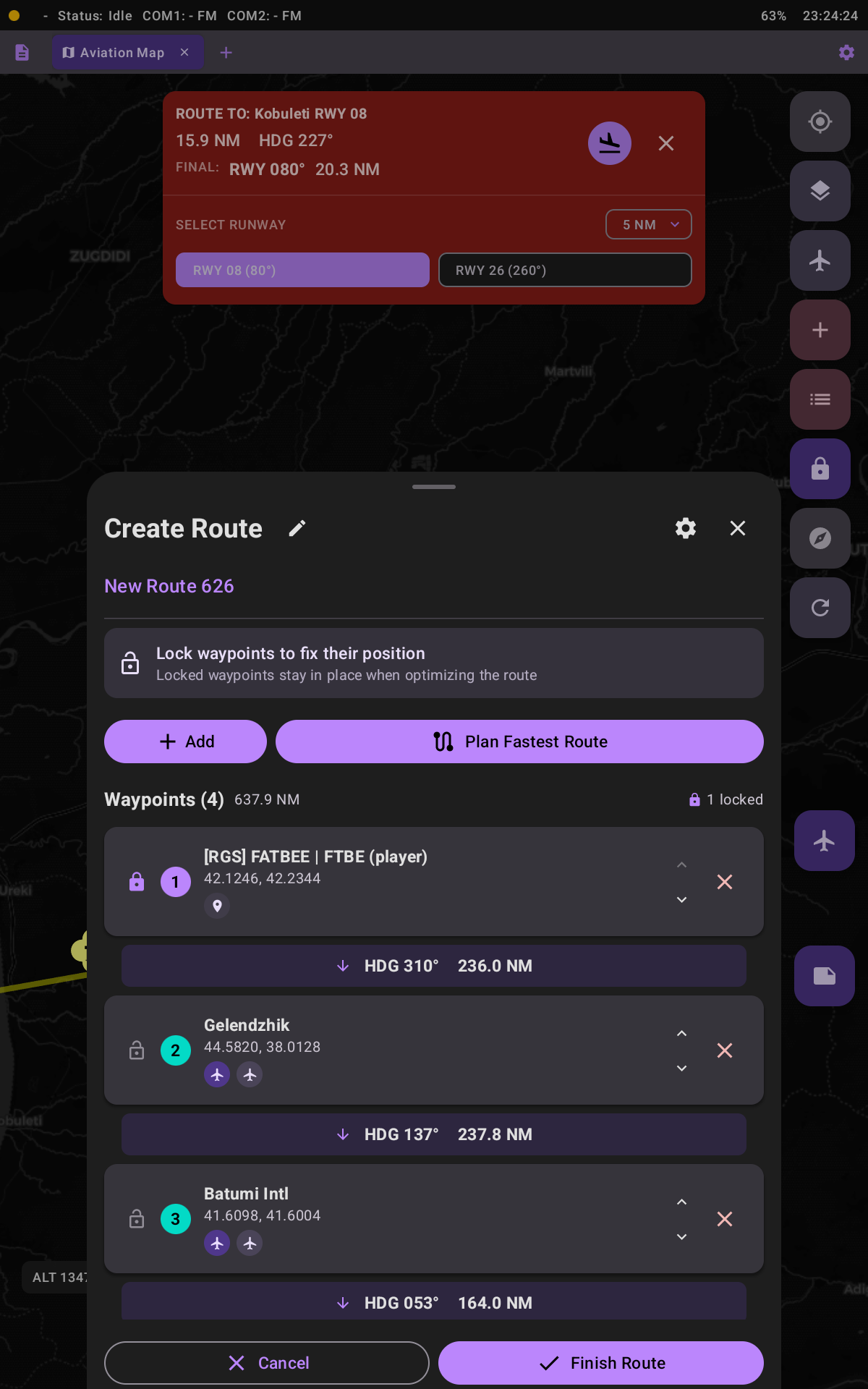

Route planner interface with live preview

Landing route creation sheet with configuration options

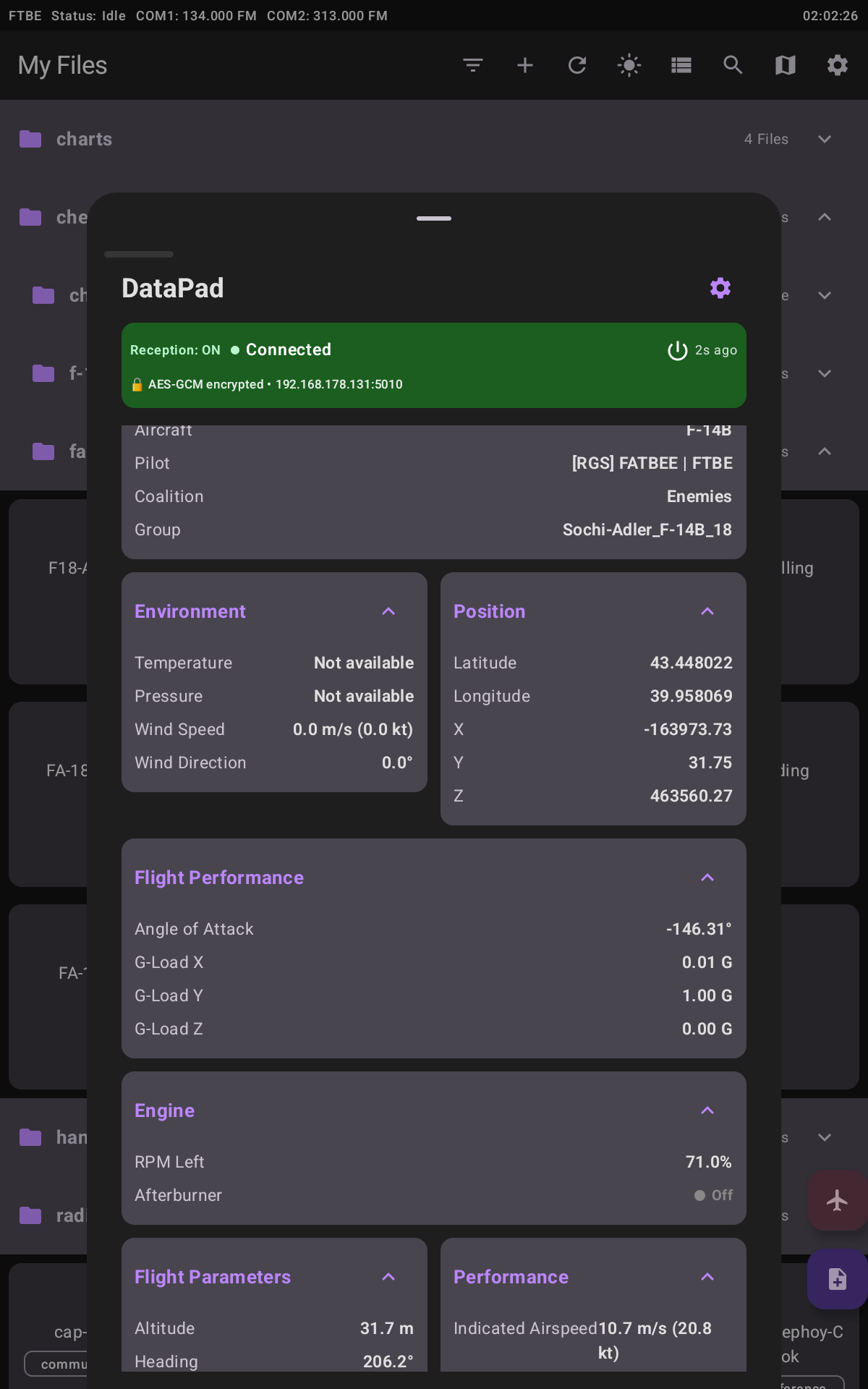

DataPad displaying live aircraft telemetry from DCS World

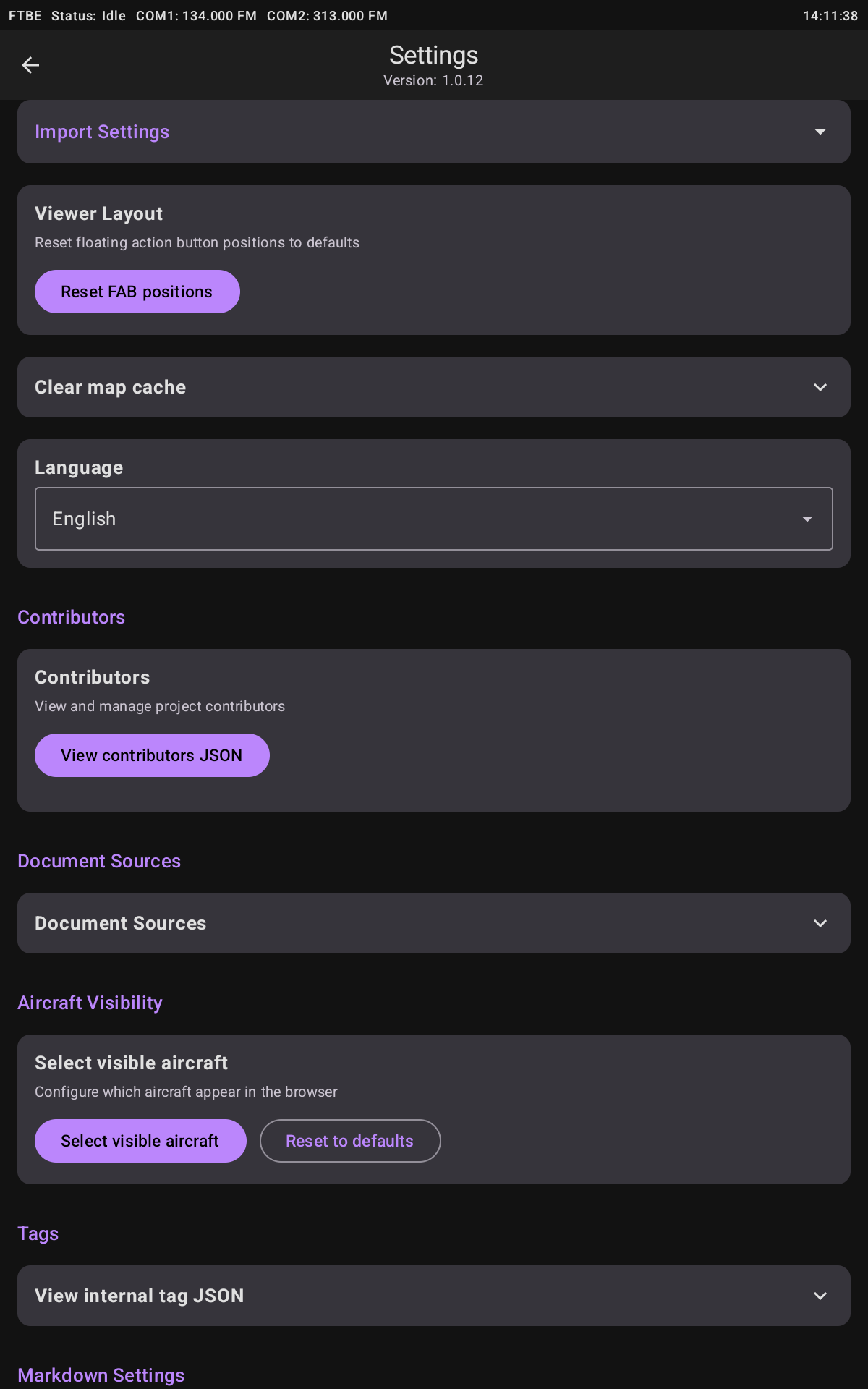

Application settings and configuration panel

Demo Videos 🎬

📝 NOTE
This is a test recording to evaluate recording performance, tablet capture workflow, resolution settings, and overall system stability during DCS gameplay. Mission content and pacing are deliberately simple and functional.

Installation for Developer

Step-by-step instructions to get the project running locally.

1. Prerequisites
   • Install Android Studio (Arctic Fox or later recommended).
   • Install a compatible JDK (Java 11 or later recommended).
   • Configure Android SDK and at least one emulator or use a physical device.
   • For Python forwarder scripts (optional): install qrcode and cryptography dependencies: pip install qrcode[pil] cryptography cffi (use a virtual environment to avoid system conflicts).
2. Clone the repository

git clone https://github.com/arn-c0de/InteractiveChecklists.git
cd InteractiveChecklists

1. Build with Gradle (command-line)

./gradlew assembleDebug

1. Open in Android Studio
   • Open the InteractiveChecklists directory in Android Studio.
   • Let Gradle sync and allow Android Studio to download any missing SDK components.
   • Run the app on an emulator or connected device.

System Requirements

• Supported OS: Windows, macOS, Linux (for development).
• Android Studio: Arctic Fox or newer recommended.
• JDK: Java 11+ recommended.
• Android SDK: API level corresponding to the project’s compileSdk and targetSdk (see build.gradle.kts).

How to Build & Run

• From Android Studio: Open the project, wait for Gradle to finish syncing, then select a target device and click Run.
• From the command line: ./gradlew assembleDebug builds an APK; use ./gradlew installDebug to install on a connected device.

Contributing

We welcome contributions. For guidelines, issue workflow, and coding standards, see COLLABORATORS.md.

💰 Unpaid Contributions

All contributions are currently unpaid and voluntary. This is a non-commercial project without donation functionality or sponsorship options at this time.

Quick contribution ideas:

• Improve documentation or add examples.
• Add or extend tests.
• Fix small UI/UX bugs or accessibility issues.

For larger or breaking changes, please open an issue first to discuss design and scope.

Support & Contact

If you encounter issues or have questions:

• Open an issue in this repository.
• For security-sensitive issues, please follow the instructions in SECURITY.md.
• For contribution coordination and discussions, see COLLABORATORS.md.

Bug Reports

When reporting a bug, please include a screenshot if possible.
Use the screenshot to mark or highlight the exact area where the issue occurs, and briefly describe what is shown and what is wrong in that location.

FAQ

• Q: How do I run tests?
  • A: There are unit tests under app/src/test. Run them via ./gradlew test.
• Q: What is the license?
  • A: This project is licensed under CC-BY-NC-SA 4.0. See the LICENSE file for details.
• Q: Where is the documentation?
  • A: See the docs/ folder or the Documentation index.

Acknowledgements & Credits

Thanks to all contributors and to the Jetpack Compose and Android open-source ecosystems used in this project.

License

This project is licensed under the terms in the LICENSE file (CC BY-NC-SA 4.0).
